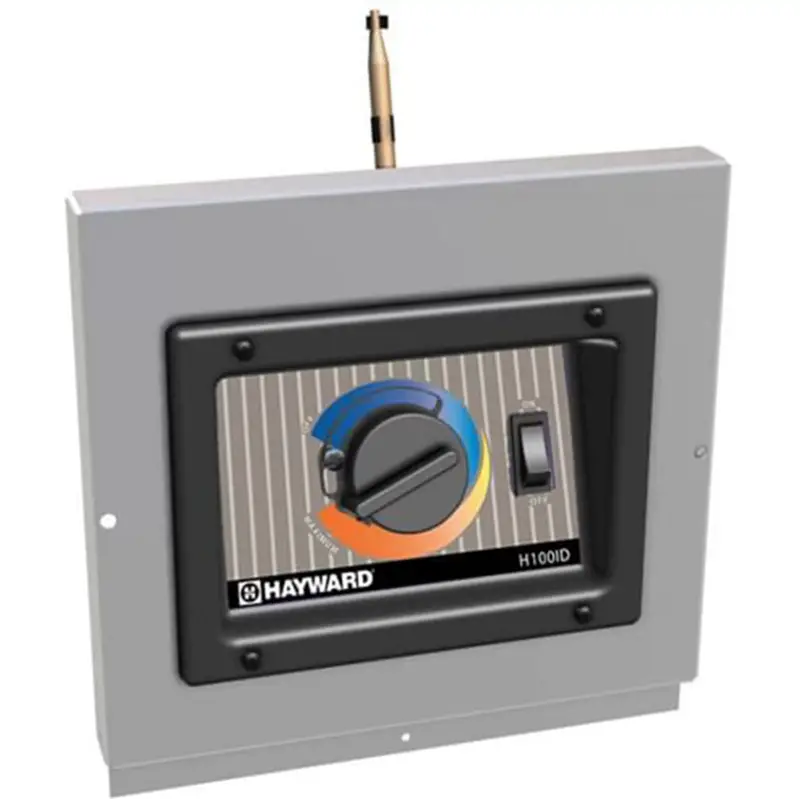

CONTROL PANEL ASSEMBLY – ABG100 | IDXCPA1101

Hayward Control Panel Assembly (IDXCPA1101) functions as the operational hub for the Hayward ABG100 pool heater. It manages heater operation, including powering the unit, adjusting temperature settings, and monitoring system status.

• Power and Control:
• The control panel activates the heater when turned on.
• It allows users to set the desired water temperature, sending instructions to the heater’s internal components.
• Temperature Regulation:
• The panel communicates with the thermostat to monitor water temperature.
• Once the water reaches the desired temperature, the panel signals the gas valve and burner to stop heating until it needs to reheat.
• Ignition System Management:
• When heating is required, the control panel triggers the ignition system, which opens the gas valve and ignites the burner.
• Safety Monitoring & Error Detection:
• The panel continuously monitors the system for issues like overheating, gas supply problems, or ignition failure.
• If a problem is detected, it can shut down the heater or display an error message to prevent damage.
